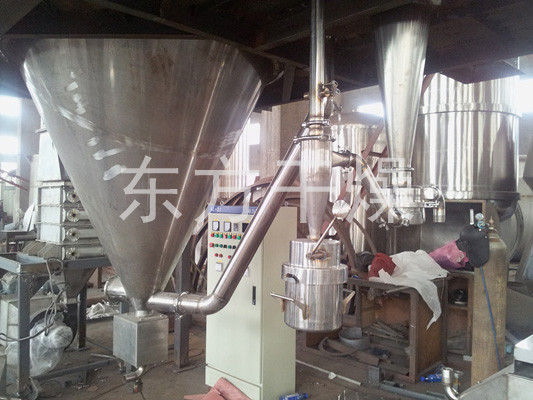

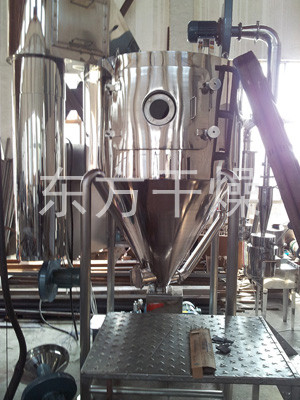

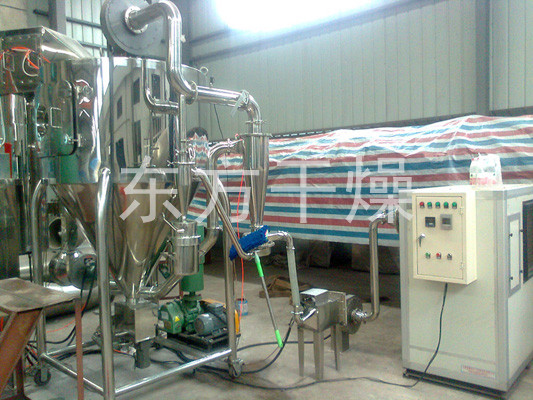

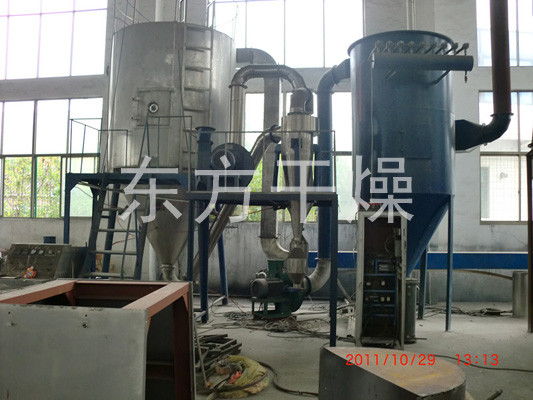

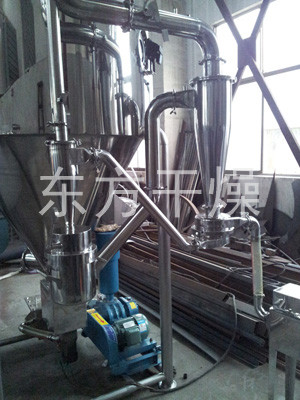

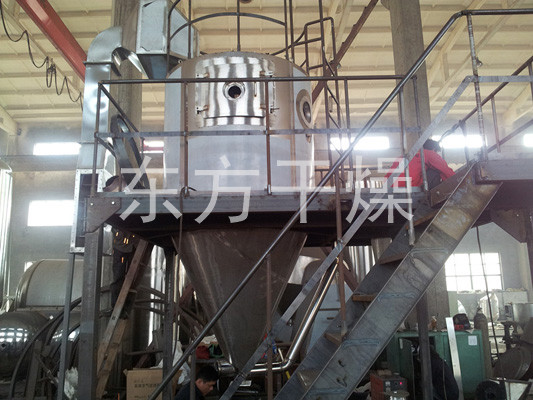

ZLPG family medicine extract spray dryer

Product description
  This machine uses fully enclosed, all parts are made of stainless steel, with three purification devices, filtered air of 100,000 request. Cylinder and top with cold wall means that the wall temperature <80 ℃, drying tower equipped with air brushing column means. After the drying machine Chinese medicine extract powder, coking deterioration phenomenon does not occur, greatly increasing the yield rate of powder (95%), but does not produce the phenomenon of medicine mixing and sticky wall phenomenon.

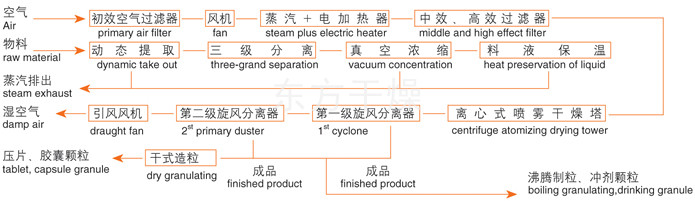

Working principle
  Chinese medicine extract high-speed centrifugal spray device is centrifugal spray drying technology in particular material drying, but also high-speed centrifugal atomization allows material dispersed into a mist, full contact with the hot air to complete the instant drying to form a powder finished drying apparatus.
Features
◎ tower having cold jacket On
◎ tower equipped with automatic vibration device;
◎ tower, piping with quick opening hole cleaning hole and sewage;
◎ can be equipped with automatic control thermostat feed tank;
◎ High-pressure washing column can be equipped with manual random attachment;
◎ portion in contact with material made of stainless steel; (or all stainless steel);
◎ material collected two-stage cyclone dust removal device, or a
◎ cyclone and wet dust collector;
◎ inlet air temperature and continuous automatic control devices.
◎ can be equipped with gas cleaning device.
Technical Specifications

Model ZLPG-15 ZLPG-20 ZLPG-25 ZLPG-32 ZLPG-38 ZLPG-40 ZLPG-47 ZLPG-52 ZLPG-58
Water evaporation 5 10 25 50 80 100 150 200 300
The amount of processing liquid feed 6-7 12-14 25-34 50-68 80-108 100-135 150-203 200-270 300-406
Finished output 1-2 2-4 4.8-7.2 9.2-14 14.8-22.4 18.4-28 28-42 36.8-56.4 55-85
Wet material solids 18-25
The water content of the finished product 3-5
Electric power 36 45 63 99 132 153 204 246 330
Heating source Steam + electricity
Product collection methods
And a collection efficiency
Collection point or two: a collection BMX ≥95%
Controlled instrument Automatic temperature and pressure control, regulation, interlock alarm
Inlet air temperature 150-200
Air temperature 80-100
Dimensions 5000 5500 7000 8000 9800 11000 12200 14100 15000
  width 3000 3500 4000 5000 5700 6200 7000 7800 9000
(mm) high 4500 4600 5200 6500 7600 8100 9000 9850 11100

Note: ★actual dimensions can be determined according to the actual situation, the above dimensions are for reference only.
   ★Evaporation is more than the maximum amount of evaporation.
