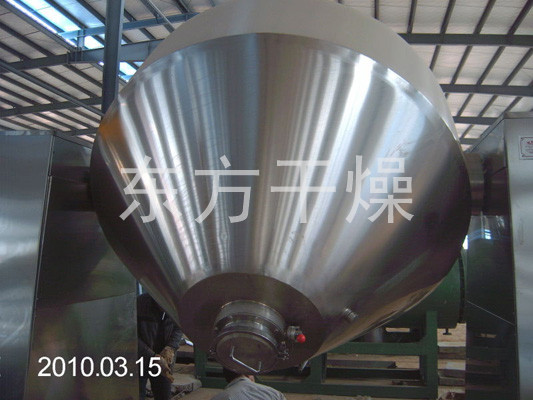

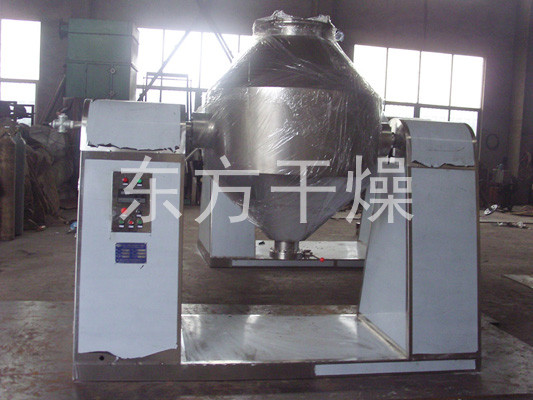

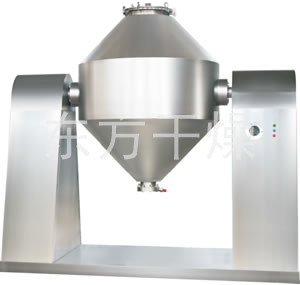

SZG double cone rotary vacuum dryer

Product description

SZG double cone vacuum dryer drying apparatus is a new generation factory in domestic similar products combine technology developed, using a double cone vacuum belt - chain two elastic coupling manner, thus equipment running smoothly. Specially designed technology, fully reflects the good two concentric shafts, heat medium and vacuum systems are using a reliable mechanical seal or rotary joint US technology. On this basis, we have developed SZG-A It can be variable speed, but also for climate control.
   As a professional drying equipment factory, plant products from the high temperature thermal oil as medium quality, low temperature steam and hot water readily available. Drying the adhesive material, the factory will be designed especially for you "copy board" mechanism or set balls in the tank.
Working principle
◎Sealed jacket pass into the thermal energy source (such as hot water, low pressure steam or thermal oil), heat is passed through the inner shell dried material.
◎Under driving of power, the tank is rotated slowly and continuously mixing tank material, so as to achieve the purpose of drying strengthen.
◎Material in a vacuum, vapor pressure drops to a moisture (solvent) saturated material surface and evaporates, and is discharged by the vacuum pump timely recovery. Material inner moisture (solvent) continuously to the surface infiltration, evaporation, discharge three ongoing process, the purpose of drying the material in a very short period of time.
Features
◎Oil heating. Automatic climate control. Biochemical products can be dried.
◎And mineral raw materials, the temperature can be between 20 ~ 160oC.
◎High thermal efficiency, improve oven than 2 times.
◎Indirect heating. The material will not be contaminated, in line with "GMP" requirements. Equipment maintenance is simple, easy to clean.

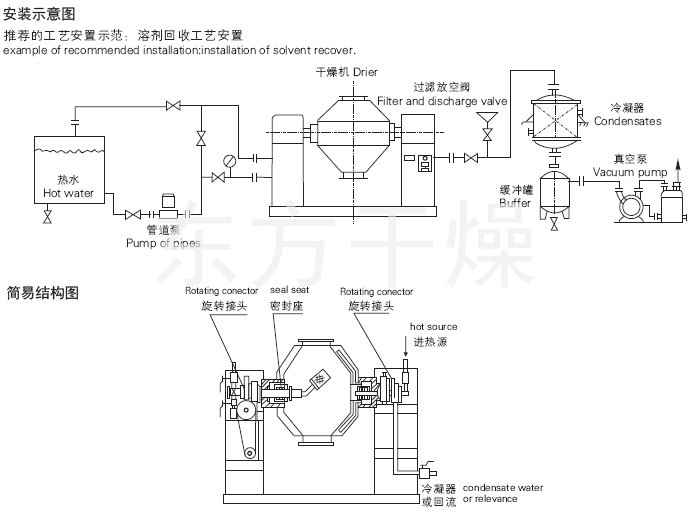

◎Recommended placement process demonstration solvent recovery process resettlement.
Adapt materials
   Applicable concentrated chemical, pharmaceutical, food and other industries powder, granular and fibers, mixing, drying and the need for low-temperature drying of materials (such as biological products, etc.). More suitable for oxidation, volatile, drying heat-sensitive, strong stimulation, toxic and not permitted to destroy the crystal material.
Technical Specifications

Specification
Name
100 350 500 750 1000 1500 2000 3500 4500 5000
罐內(nèi)容積 100 350 500 750 1000 1500 2000 3500 4500 5000
Loading volume (L) ≤50 ≤175 ≤250 ≤375 ≤500 ≤750 ≤1000 ≤1750 ≤2250 ≤2500
Heating area (m2) 1.16 2 2.63 3.5 4.61 5.58 7.5 11.2 13.1 14.1
Rotating speed (rpm) 4 - 6
Motor Power (kw) 0.75 1.1 1.5 2 3 3 4 5.5 7.5 11
It covers an area of length × width(mm) 2160×800 2260×800 2350×800 2560×1000 2860×1300 3060×1300 3260×1400 3760×1800 3960×2000 4400×2500
Rotating height(mm) 1750 2100 2250 2490 2800 2940 2990 3490 4100 4200

Tank design pressure (MPa)

-0.1-0.15
Jacket design pressure (MPa) ≤0.3
Operating temperature (oC) Tank≤85 Jacket≤140
With a condenser, the vacuum pump, 2X-15A 2X-15A 2X-30A 2X-30A 2X-70A JZJX300-8 JZJX300-4 JZJX600-8 JZJX600-4 JZJX300-4
Type, power 2KW 2KW 3KW 3KW 505KW 7KW 9.5KW 11KW 20.5KW 22KW
When not in condenser vacuum pump , SK-0.4 SK-0.8 SK-0.8 SK-2.7B SK-2.7B SK-3 SK-6 SK-6 SK-9 SK-10
Type, power 1.5KW 2.2KW 2.2KW 4KW 4KW 5.5KW 11KW 11KW 15KW 18.5KW
Weight(kg) 800 1100 1200 1500 2800 3300 3600 6400 7500 8600

NOTE: The volume change before and after drying a lot of material, it may be appropriate to increase the charge coefficient or reduced.
