GZQ series vibration fluidized bed dryer

Working principle
After importing the material from the feed into the machine, in the vibrating force, the material along the horizontal fluid bed throw, continuous forward motion, after hot air upward through the fluidized bed heat exchanger with wet material, wet air through the cyclone dust discharge 3: 1 from the exhaust. Dried material is discharged from the discharge imports.
Features
◎ vibration source is driven by vibration motor, smooth operation, easy maintenance, low noise, long life.
◎ fluidized symmetry, no dead gaps and broken phenomenon can obtain uniform drying and cooling products.
◎ adjustable, suitable wide. Material thickness and speed of movement within the machine and full amplitude can stepless adjustment.
◎ small damage to the surface of the material. Drying can be used for friable material, when the material particles of irregular not affect work results.
◎ fully enclosed structure. Effectively prevent cross infection between the material and the air, the working environment clean.
◎ high mechanical efficiency and thermal efficiency, energy saving effect, than the average drying device can save 30 to 60%.
Adapt materials
Applicable to chemical, pharmaceutical, food, dehydrated vegetables, grain, mineral and other industries powder, dry granular materials, cooling and other operations. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate fertilizer, radish, soybean meal, distillers grains, seeds, slag, sugar and so on.
Technical Specifications

Size
Model
A B C D E F Weight(kg)
ZLG3×0.30 3000 300 1350 900 430 1650 1250
ZLG4.5×0.30 4500 300 1350 900 430 1650 1250
ZLG4.5×0.45 4500 450 1550 950 430 1700 1670
ZLG4.5×0.60 4500 600 1650 950 430 1700 1670
ZLG6×0.45 6000 450 1650 950 430 1700 2100
ZLG6×0.60 6000 600 1700 1000 500 1700 2410
ZLG6×0.75 6000 750 1850 1000 600 1850 2840
ZLG6×0.9 6000 900 2000 1000 600 1850 3160
ZLG7.5×0.60 7500 600 1850 1000 600 1850 3200
ZLG7.5×0.75 7500 750 2000 1000 600 1850 3600
ZLG7.5×0.9 7500 900 2100 1000 600 1850 4140
ZLG7.5×1.2 7500 1200 2500 1150 800 2050 5190

Model Fluidized bed area
(M2)
Inlet air temperature
(oC)
Air temperature
(oC)
Water evaporation capacity
(kg)
Vibration motor
Model Power Kw
ZLG3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
ZLG4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2
ZLG4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2
ZLG4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2
ZLG6×0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5×2
ZLG6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2
ZLG6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2
ZLG6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2
ZLG7.5×0.60 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2
ZLG7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2
ZLG7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2
ZLG7.5×1.2 9 70-140 40-70 200-260 ZDS51-6 3.0×2

★Evaporation is more than the maximum amount of evaporation.

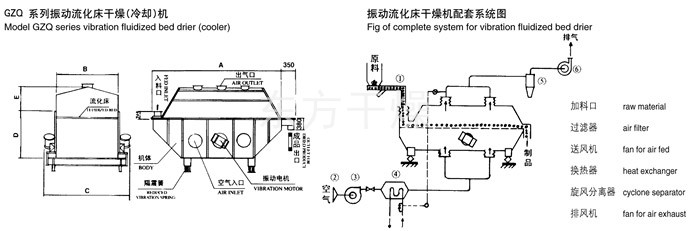

Structural diagram
